MT5000D Series

Click on the image to download the brochure

The MT5000D Series are used to view prepared thin slices of thin tissue, which have a common setup that utilizes lower magnification objective lenses 4X, 10X, 20X and 40X. The lowest magnifications are typically used most frequently. When using a dermatology microscope the samples must be sliced thinly in order to allow the physician to view it clearly.

Brightfield:
The simplest of all the optical microscopy illumination techniques. Sample illumination is transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background.

The MT5000D Microscopes features include:

• Compact Space Saving Footprint design with ergonomics in mind

• Infinity Corrected Optical System (ICOS™) with all newly designed optics

• Comfortable Siedentopf-type Binocular and Trinocular Viewing heads

• Optional Ergonomic tilting binocular head- Adjustable vertically from 10°to 50° degrees

• Ceramic Coated Stage with Ergonomically Placed Low Position Drop down Control

• Low Positioned Ergonomic Coaxial Focus Control

• Smooth Operating Ergonomic Quintuple Nosepiece

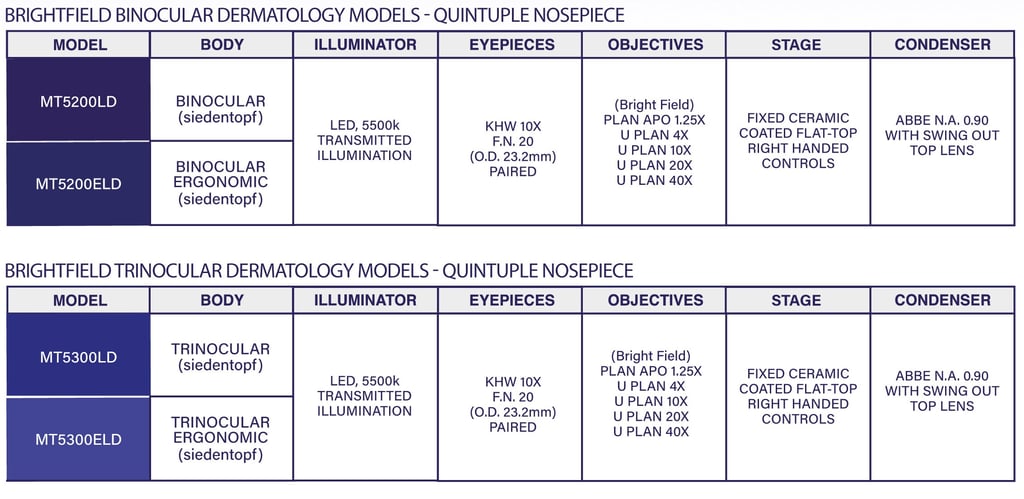

• Plan Apo 1.25X objective is used with a specialized Abbe condenser

• Plan Apo 4X, 10X, 20X and 40X is included

• 2.5X U. Plan objective is available

• Brightfield Observation mode

• Super Bright LED Koehler illumination, lambertian design

• Abbe Condensers with swing out top lens

• Built-in iris diaphragm

• Integrated Automatic Voltage Sensing Power Supply with localized power cord

• Wide Range of Filters and Accessories
